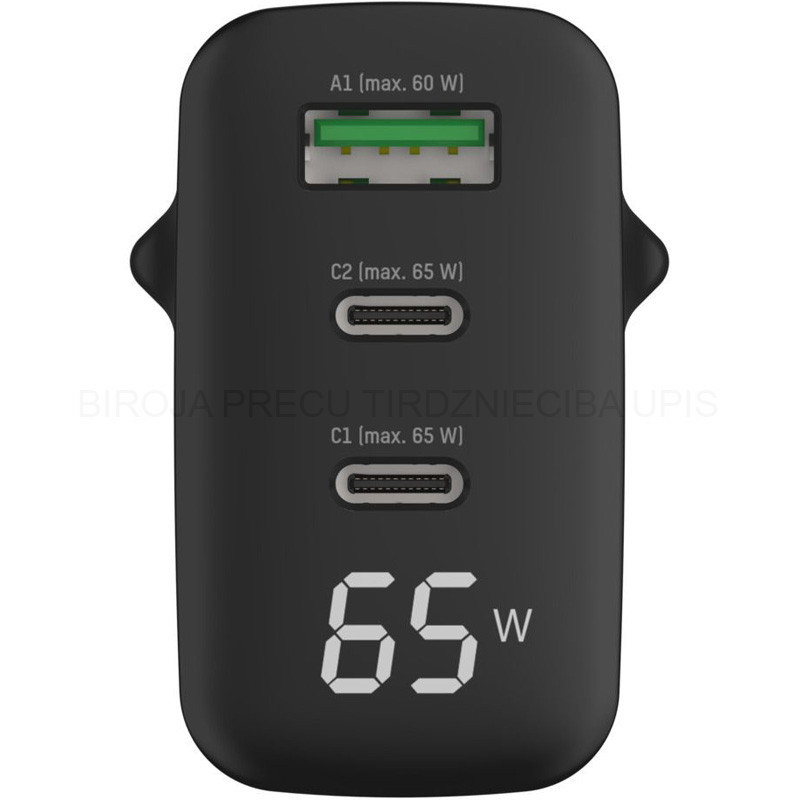

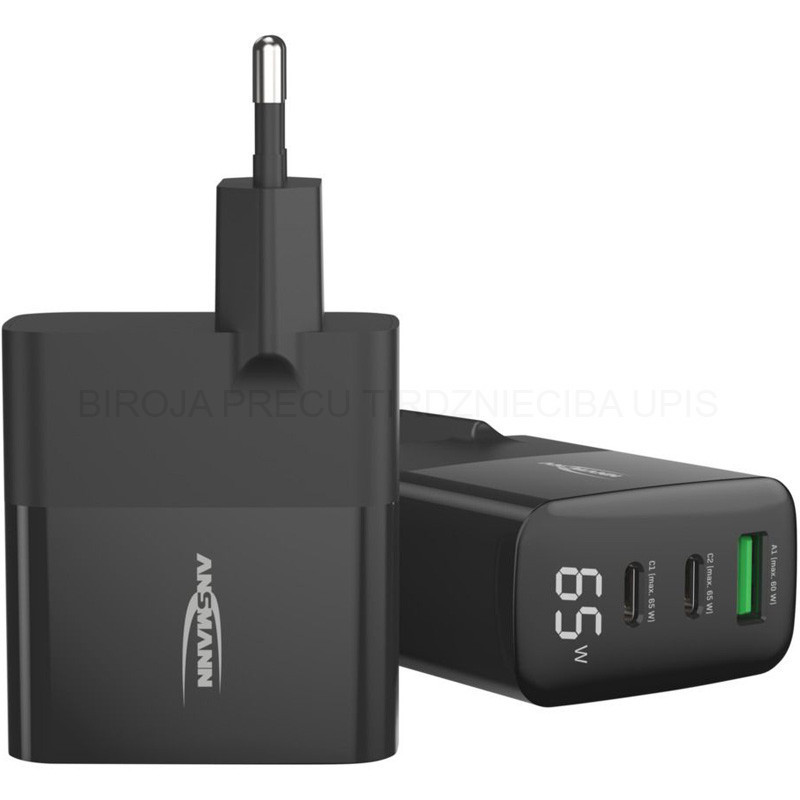

With multiple USB outputs and a power rating of 65 W, the USB charger from ANSMANN offers the ideal charging solution for your workplace in the office or at home.
This powerful device charges all your devices - from smartphones to notebooks - ultra-fast and reliably! Your device is optimised and safely charged thanks to the intelligent charge control and Multisafe technology. The LED display shows the current power consumption of all connected USB devices at any time. Very low stand-by consumption makes this charger not only efficient, but also economical.
Silicon-based electronics have been the standard since the 1970s and have become more and more powerful in quick steps. "Moore's Law" predicted a doubling of the performance of silicon-based transistors about every 18 months, which was true for a long time. In the meantime, this technology has reached a performance limit where it can no longer become much more efficient and is being replaced by GaN technology.
"GaN" stands for gallium nitrite, a semiconductor technology that can conduct high electrical currents with low heat generation. This makes it possible, for example, to offer USB chargers with high power in significantly smaller sizes.
Input voltage | 100 - 240V AC |
---|---|
Max. input current | 1.5 A |
AC frequency | 60Hz / 50Hz |
Port | USB type C, USB-A |
Output voltage | 5 - 20V DC |
Max. output current | 3 A |
Maximum power | 65 W |
Functions | Overcurrent protection, Short circuit protection, Temperature control |
Charging protocol | PPS, Quick Charge 3.0, Power Delivery Profile 3 |
USB-Ports | 3 |
Average operational efficiency | 83,1 % |
Efficiency at low load | 62,8 % |
Power consumption at no load | 0,230 W |
Color | black |
Packaging | cardboard box |
Storage temperature | -40 - 80 °C |
Operating temperature | 0 - 25 °C |
